Specifications

Model DF-20B
Axes 3/4
Wire Capacity Ø0.012”~0.098” (0.3~2.5mm)
Max Outside Diameter Ø1.969” (50mm)
Max Feed Length Unlimited
Feeding Length ±0.01-±9999.99mm
Wire Feed Speed 0~361 ft./min (0~110m/min)
Cam Setting Value ±0.01°-±359.0°
Production Rate 70 pcs/min
Wire Feed Motor 2.7KW
Cam Motor 2.7KW
Quill Motor 1.0KW
Dimension 32 x 43 x 69” (800 x 1100 x 1750mm)
Weight 2,646lbs. (1200kg)

Downloads

Delta DF-20 Download

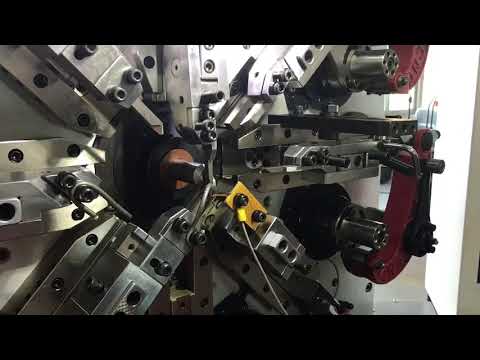

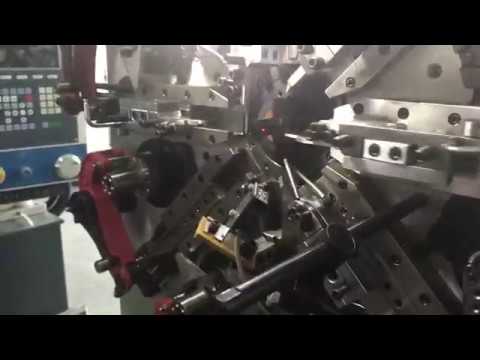

Videos

The specifications are subject to change without notice.
