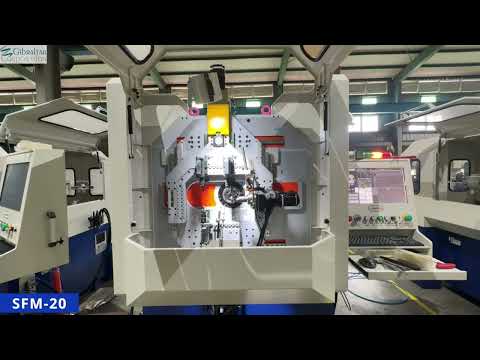

Simco SFM-20

Features

  • The adjustable slide table and motor-controlled axes provide flexible tool positioning and reduce setup time.
  • The EtherCAT-integrated control software optimizes machine programming and improves production speed.
  • The quick-lock quill holder and feeding roller system simplify setup and reduce operator adjustment time.
  • Optional additional axes and accessories increase machining speed and enhance workpiece quality for complex applications.
  • Options:
  • Double servo spinner
  • Single servo spinner
  • Servo rotary Gripper (for extension springs)
  • Servo cutter
  • Full set of standard tooling
  • Safety cover & interlock
  • Automatic pay off (decoiler)
Request a Quote

Specifications

Model SFM-20
Axes 6 (18 Max)
Wire Capacity 0.023 - 0.102" (0.60 - 2.60 mm)
Max. OD 1.575" (40 mm)
Max. Leg Length 2.362” (60mm)
Power 220V, 3 Phase
Dimension 77 x 70 x 69" (1970 x 1790 x 1770 mm)
Weight 4000 lbs. (1630 kgs)

Downloads

Simco SFM-20 Download

Videos

The specifications are subject to change without notice.
