Simco YSM NC-26T

Features

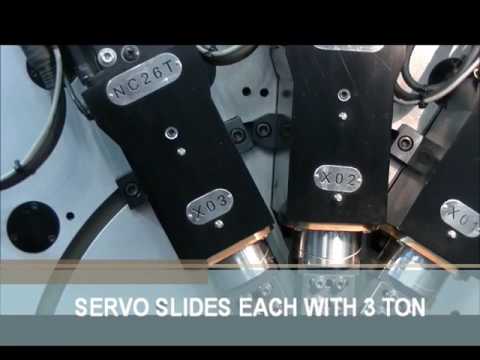

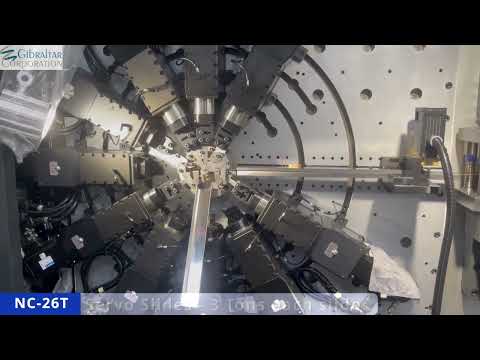

  • Servo Slides (Camless)
  • Max. 15 axes
  • Standard 7 Servo Slides, 1 Press, 1 Servo Wire Feeding,  after Processing (Rear Action) *2
  • Windows Timeline Software



Request a Quote

Specifications

Model YSM NC-26T
Wire Capacity 0.023 - 0.126" (0.6 - 3.2mm)
Max. Width of Strip 1.575" (40mm)
Thickness of Strip 0.012 - 0.059" (0.3 - 1.5mm)
Harness of Strip 80 (Carbon)
Length of Feeding Unlimited
Max. Forming Speed 200 ppm
Press Capacity 15 Tons
Slide Capacity 3.0 Tons
Press Stroke 0.629" (16mm)
Slide Stroke 2.362" (60mm) x 7
Feeding 2.0HP (1.5KW)
Press 4.5HP (3.5KW)
Forming Cam 3.0HP (2.2KW)
Rear Processing 1.5HP (1.1KW)
Rotation Axis (Optional) 0.5HP (0.4KW)
Dimension 89 x 39 x 71" (2250 x 990 x 1800 mm)
Weight 5512 lbs. (2500 kgs.)

Downloads

Simco YSM NC-26T Download

Videos

The specifications are subject to change without notice.
