YD-30

Features

  • Standard 6 axes with servo motors – feeding, cutter, wedge, pitch, coiling (1), arbor/cutter slide
  • Cutter moves in synchronization with the arbor on a movable slide
  • Yaskawa servo motors and Omron/Schneider electrical parts
  • Yaskawa Mechatronlink Controller
  • Comply with Industry 4.0 data output and real-time production information
  • Adjustment available for an arbor (in/out)
  • Standard tooling is made from carbide, SKD11, and H.S.S steel
  • Cutting mode comes in a straight cut, swing cut, twist cut, and fly cut
  • Quick changeover from right-hand and left-hand coiling

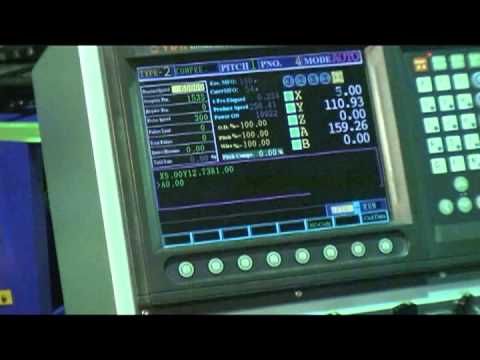

  • Patented spring software with touch screen based on Windows 10 OS
  • USB device available for loading and saving the spring program
  • Auto edition programming for easily setting up the spring program



Request a Quote

Specifications

Model YD-30
Axe 6
Wire Capacity 0.031 – 0.118” (0.8 –3.0 mm)
Max.OD 1.969” (50 mm)
Feed Speed (m/min) 295 ft./ min (90 m/min)
Production Speed 350 pcs/min
Dimensions 79 x 38 x 77" (2000x950x1950mm)
Weight 4299 lbs. (1950 kgs)

Downloads

YD-30 Download

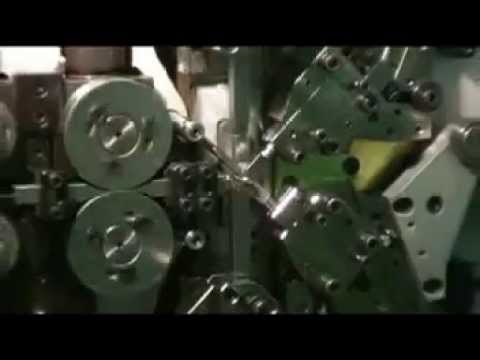

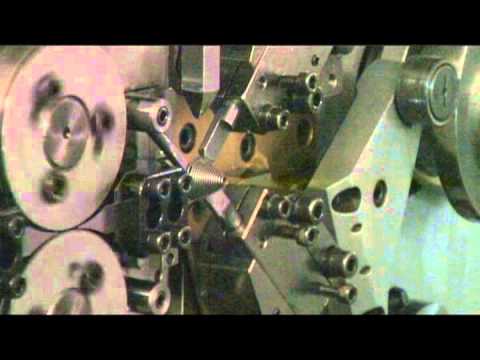

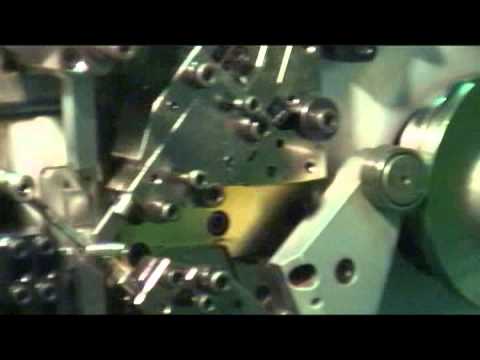

Videos

The specifications are subject to change without notice.
